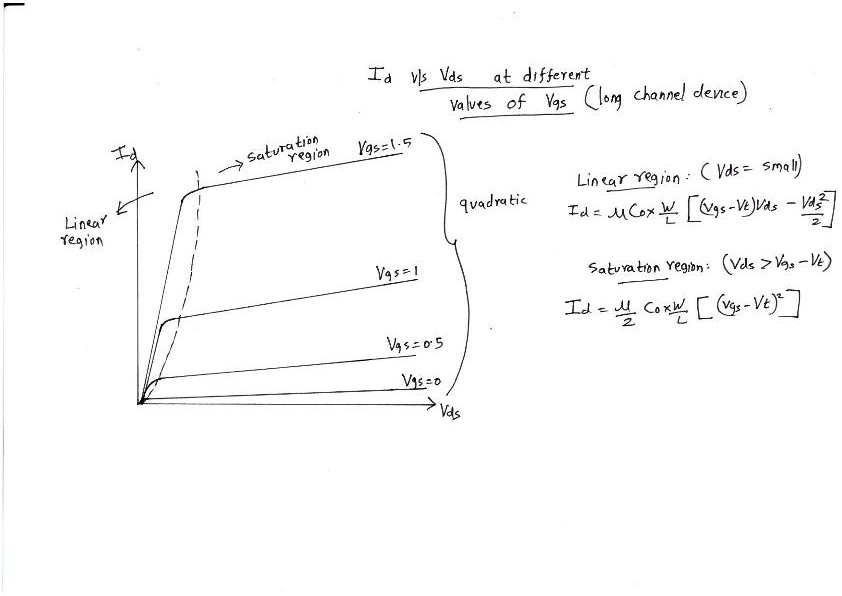

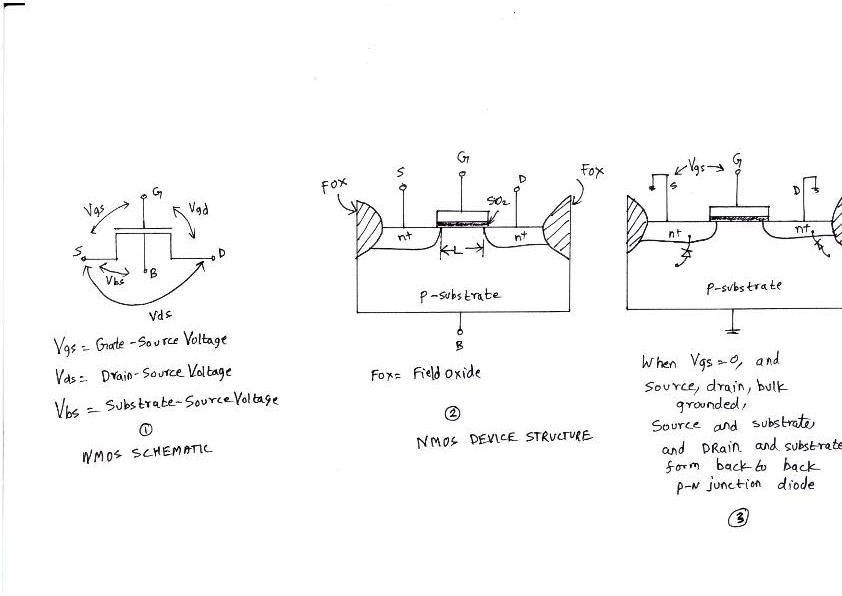

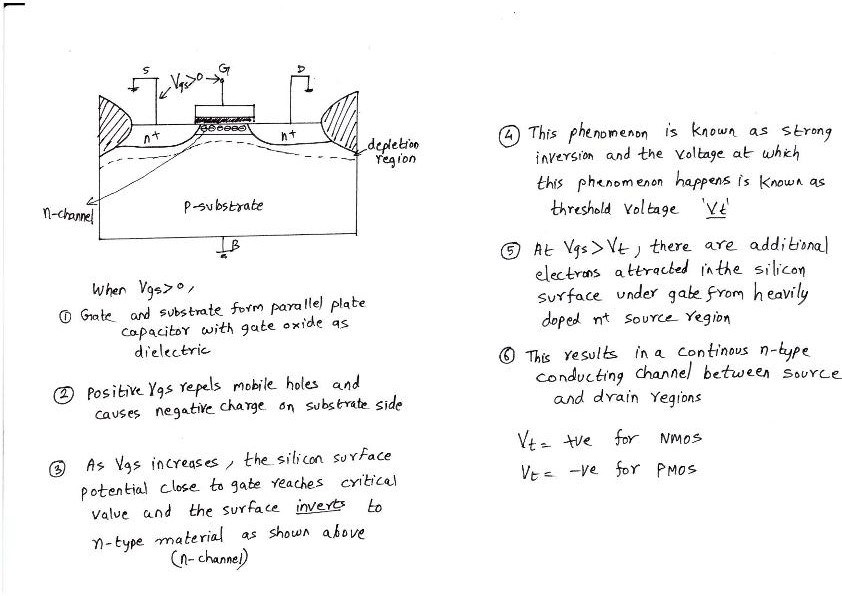

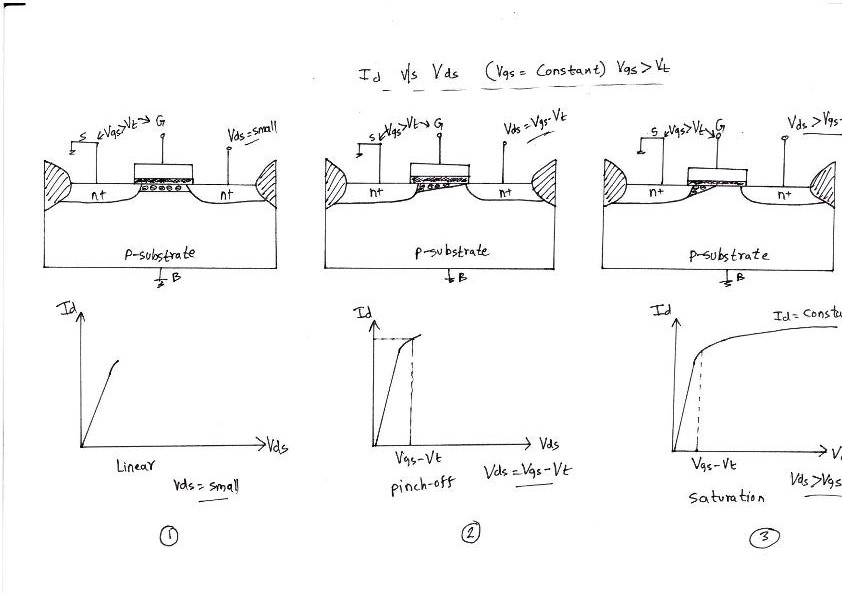

I-V characteristics of NMOS & PMOS transistors
The Contents of this page is under review
Back to switching activity of CMOS
Back to Concept of Decoupling Capacitors
Back to Introduction to Industrial Physical Design Flow
